Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder

Name: Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Brand: HUIHAOCUSTOM
Price: 1 USD

China Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder wholesale

Brand Name : HUIHAOCUSTOM

Model Number : duct linner pin

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 10000SETS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 7000000 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : PP BAGS+CARTON+PALLET/CASE

Name : CD duct linner pin

Finished : COPPER/ZINC PLATING

Pin diameter : 2.7mm, 3mm, 3.4mm

Pin length : 19mm, 25mm, 38mm, 45mm, 50mm, 63mm

Material : mild steel / stainless steel

OEM/ODM : to be your request

Company Type : MANUFACTURER

Relate tool : WELDER

Contact Now

Weld Type Insulation Steel Duct Linner Pin Fixing Glasswool With Stud Welder

quick details of the insulation steel duct linner pin

Material	stainless steel, MILD STEEL, COPPER
Application	Building Facade Insulation Material
Name	Reflective Insulation CD weld pins
Length	9.5mm-101mm
Function	Rockwool Pipe fixed
OEM	Accept OEM Service
Usage	lock glasswool, rock wool and other insulation materials
Free sample	available
Type	Cap nail
Standard	cup head pin for ship building

Features of Insulation Steel Duct Linner Pin

Beveled Edge Cap		Prevents tearing of duct liner
Faster Welds		Forged diamond point design creates more electrical resistance for faster welds.
Better Plating		Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
Reduced Down Time		Consistent point quality reduces frequency of machine adjustments.
Stronger Welds		Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Applied with Standard Equipment		Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders.

Specification of Insulation Steel Duct Linner Pin

Photo	CD CUP HEAD PINS
	Part No.	pin diameter	round base size	pin Length
	HH-12	2.7mm	1-1/2"	Stnd up to 6"
	HH-10	3.4mm	1-1/2"	Special Order
	ZG-14	2.0mm	1-3/16"	Up to 2-1/2"
	ZG-12	2.7mm	1-3/16"	Stnd up to 6"

Different types of Insulation Steel Duct Linner Pin

standard types	details of standard
For US, Canada	the standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8"
For EU countries	the washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).
noted	the washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.

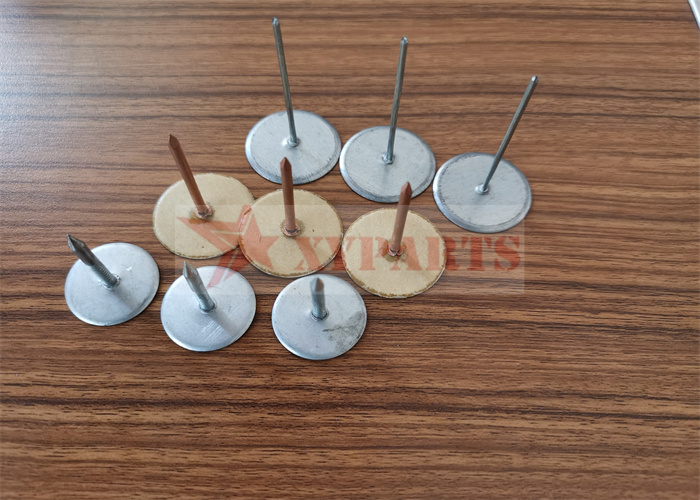

Images of Insulation Steel Duct Linner Pin

Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder

application equipments of Insulation Steel Duct Linner Pin

recommended for	pin length before welding
1/2" insulation(all densities)	12.67mm
1" insulation(1-1/2"ib density)	17.63mm
1" foam	25.55mm
1"insulation(3ib densities)	23.72mm
1-1/2" insulation(all densities)	28.42mm
2"insulation(1-1/2"-2" ib density)	37.95mm
2"insulation(3ib densities)	48.77mm
3"insulation(all densities)	69.85mm
4" insulation(all densities)	95.00mm

Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
